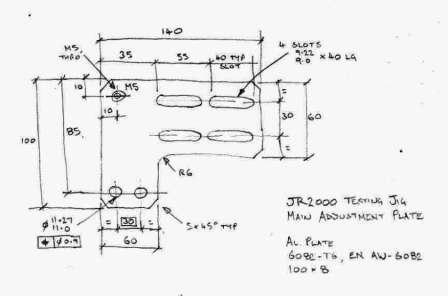

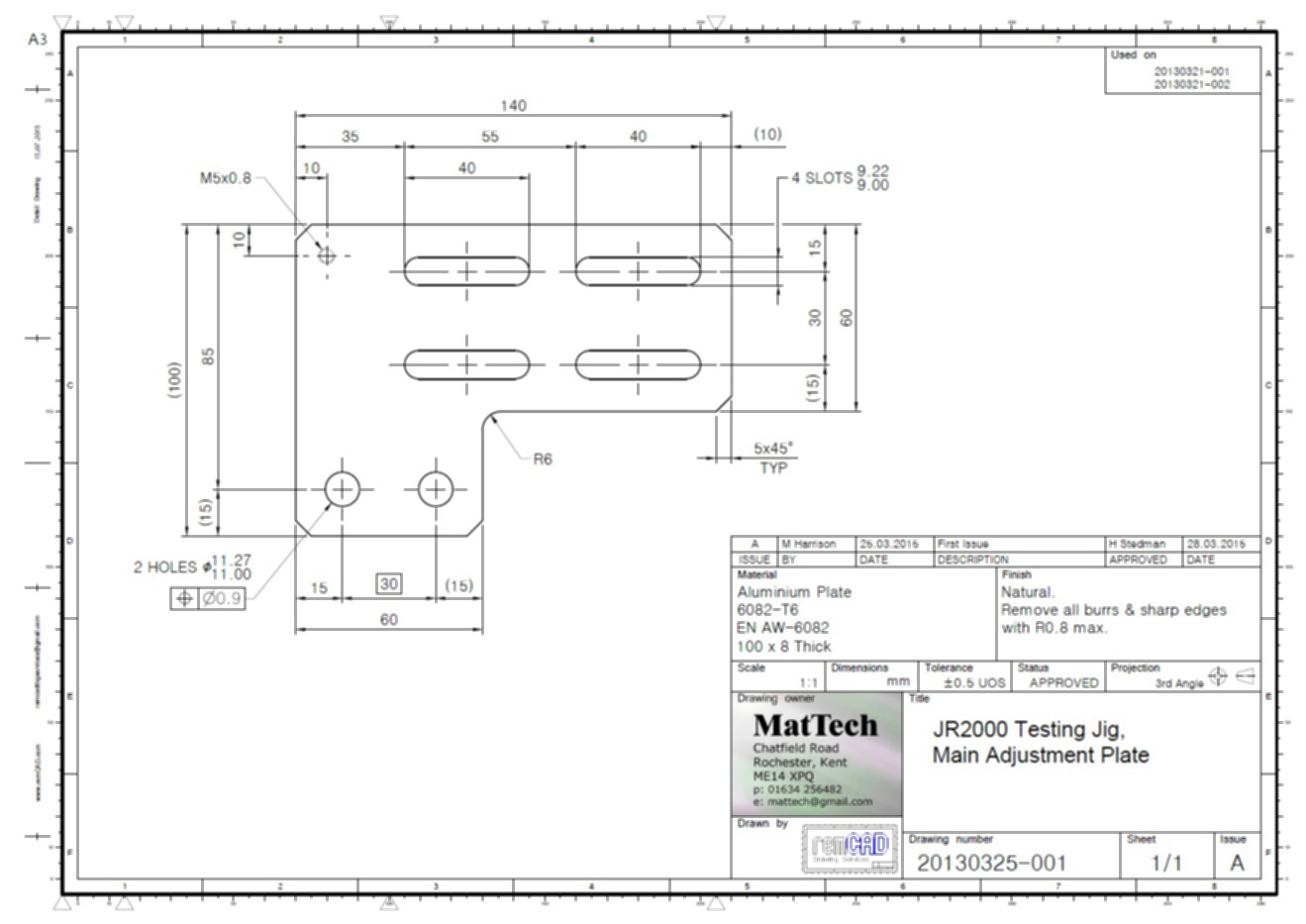

Paper to CAD Conversions: If you don’t have the facilities (or time) to draw your designs on CAD, you can just send me scanned images of your pencil sketches & I will return professionally drawn manufacturing drawings.

2D to 3D Conversions: I can create 3D CAD models from 2D CAD files or direct from sketches or images using SolidWorks 2017. These can then be used for 3D printing, manufacturing casting patterns or just to create accurate 3D imagery of the finished product.

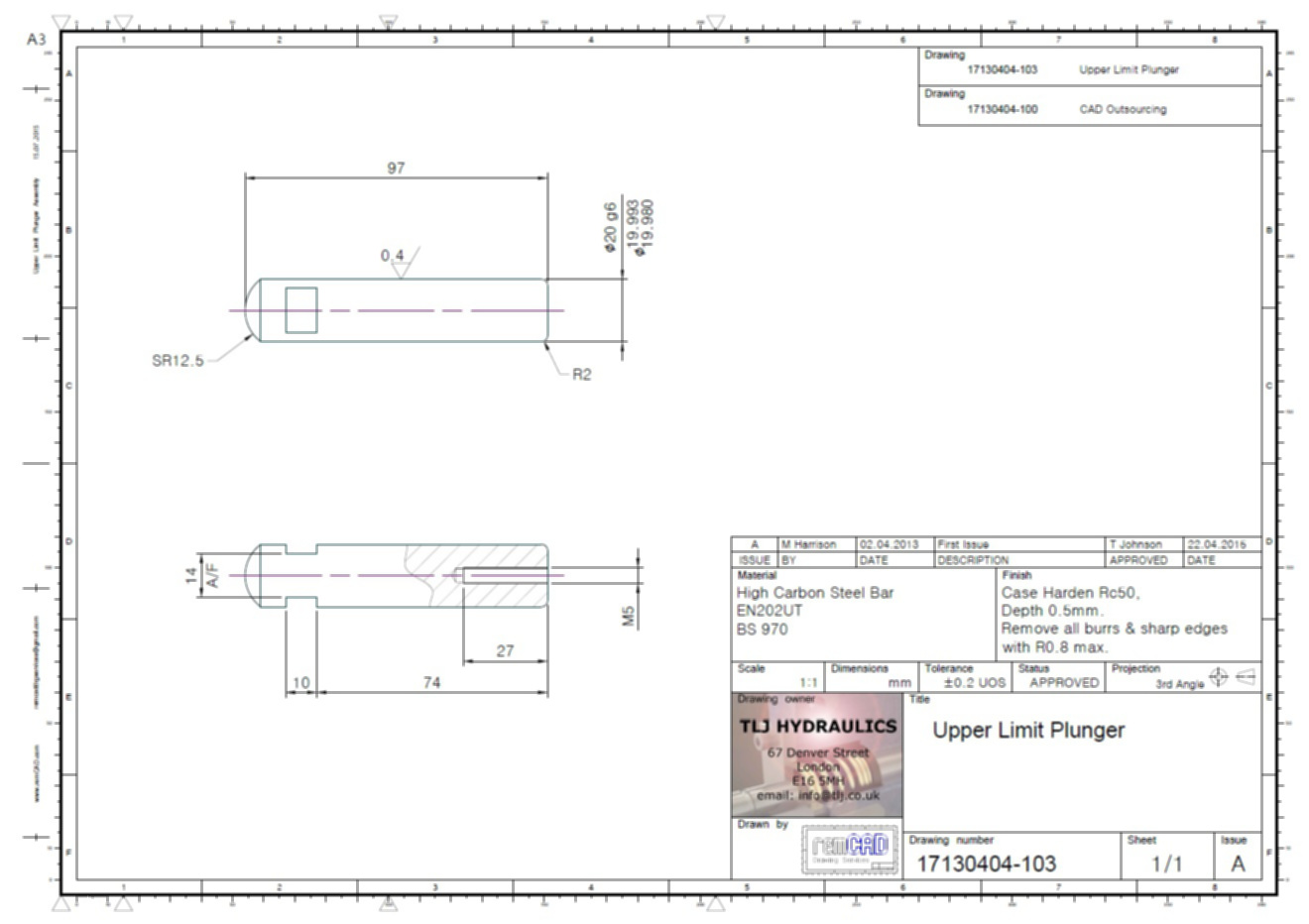

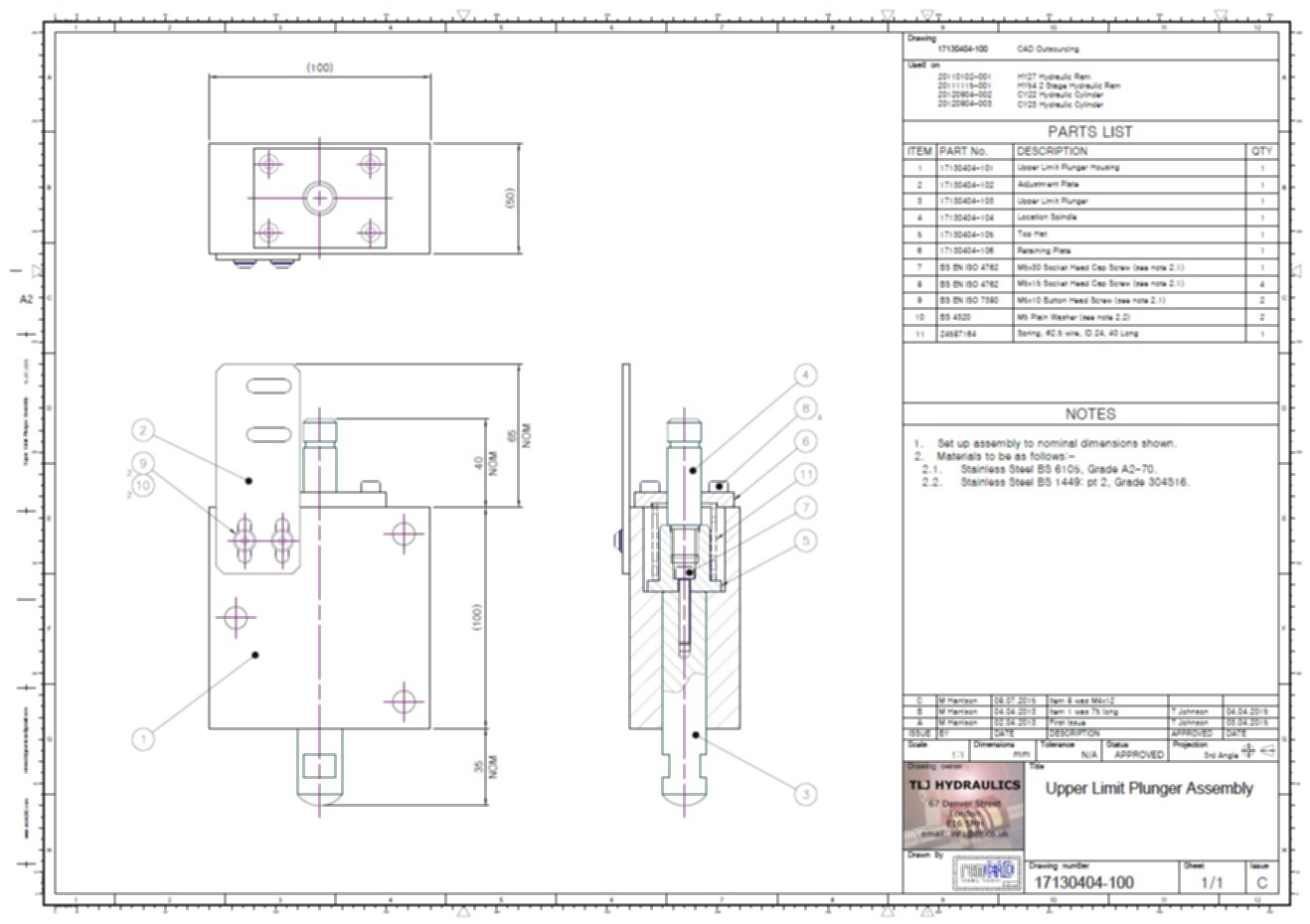

Components Detailed from Assembly Drawings: If you’ve designed an assembly but don’t want to spend days detailing up the individual components you can send the assembly drawing to me & I will do all the detailing work for you. I can check limits & fits and will dimension & tolerance the components accordingly.

Visualisation: Photo-realistic images of your concepts can help drastically with your design & can even save on prototyping costs. Accurate lighting & material textures can be applied as required.

Other: If you’ve got anything at all that you want drawn up to a professional standard, please let me know & I will see what I can do for you !
